How to use Ubuntu and LXD on Alibaba Cloud

Alibaba Cloud is like Amazon Web Services as they offer quite similar cloud services. They are part of the Alibaba Group, a huge Chinese conglomerate. For example, the retailer component of the Alibaba Group is now bigger than Walmart. Here, we try out the cloud services.

The main reason to select Alibaba Cloud is to get a server running inside China. They also have several data centers outside China, but inside China it is mostly Alibaba Cloud. To get a server running inside mainland China though, you need to go through a registration process where you submit photos of your passport. We ain’t have time for that, therefore we select the closest data center to China, Hong Kong.

Creating an account on Alibaba Cloud

Click to create an account on Alibaba Cloud (update: no referral link). You get $300 credit to use within two months, and up to $50 of that credit can go towards launching virtual private servers. Actually, make that account with the referral now, before continuing with this section below..

When creating the account, there is either the option to verify your email or phone number. Let’s do the email verification.

Let’s check our mails. Where is that email from Alibaba Cloud? Nothing arrived!?!

The usability disaster is almost evident. When you get to this page about the Verification, the text says We need to verify your email. Please input the number you receive. Alibaba Cloud did not already send that email to us. We need to first click on Send to get it to send that email. The text should have said instead something like To use email verification, click Send below, then input the numbercode you have received.

You can pay Alibaba Cloud using either a bank card or Paypal. Let’s try Paypal! Actually, to make use of the $300 credit, it has to be a bank card instead.

We have added a bank card. This bank card has to go through a type verification. Alibaba Cloud will make a small debit (to be refunded later) and you can input either the transaction amount or the transaction code (see screenshot) below in order to verify that you do have access to your bank card.

After a couple of days, you get worried because there is no transaction with the description INTL*?????.ALIYUN.COM at your online banking. What went wrong? And what is this weird transaction with a different description in my bank statement?

Description: INTL*175 LUXEM LU ,44

Debit amount: 0.37€

What is LUXEM, a municipality in Germany, doing on my bank statement? Let’s hope that the processor for Alibaba in Europe is LUXEM, not ALIYUN.

Let’s try as transaction code the number 175. Did not work. Four more tries remaining.

Let’s try the transaction amount, 0.37€. Of course, it did not work. It says USD, nor EURO! Three tries remaining.

Let’s google a bit, Add a payment method documentation on Alibaba Cloud talks only about dollars. A forum post about non-dollar currencies says:

I did not get an authorization charge, therefore there is no X.

Let’s do something really crazy:

We type 0.44 as the transaction amount. IT WORKED!

In retrospect, there is a reference on ,44 in the description, who would have thought that this undocumented info might refer to the dollar amount.

After a week, the micro transaction of 0.37€ was not reimbursed. What’s more, I was also charged with a 2.5€ commission which I am not getting back either.

We are now ready to use the $300 Free Credit!

Creating a server on Alibaba Cloud

When trying to create a server, you may encounter this website, with a hostname YUNDUN.console.aliyun.com. If you get that, you are in the wrong place. You cannot add your SSH key here, nor do you create a server.

Instead, it should say ECS, Elastic Compute Service.

Here is the full menu for ECS,

Under Networks & Security, there is Key Pairs. Let’s add there the SSH public key, not the whole key pair.

First of all, we need to select the appropriate data center. Ok, we change to Hong Kong which is listed in the middle.

But how do we add our own SSH key? There is only an option to Create Key Pair!?! Well, let’s create a pair.

Ah, okay. Although the page is called Create Key Pair, we can actually Import an Existing Key Pair.

Now, click back to Elastic Computer S…/Overview, which shows each data center.

If we were to try to create a server in Mainland China, we get

In that case, we would need to send first a photo of our passport or our driver’s license.

Let’s go back, and select Hong Kong.

We are ready to configure our server.

There is an option of either a Starter Package or an Advanced Purchase. The Starter Package is really cool, you can get a server for only $4.5. But the find print for the $300 credit says that you cannot use the Starter Package here.

So, Advanced Purchase it will be.

There are two pricing models, Subscription and Pay As You Go. Subscription means that you pay monthly, Pay As You Go means that you pay hourly. We go for Subscription.

We select the 1-core, 1GB instance, and we can see the price at $12.29. We also pay separately for the Internet traffic. The cost is shown on an overlay, we still have more options to select before we create the server.

We change the default Security Group to the one shown above. We want our server to be accessible from outside on ports 80 and 443. Also port 22 is added by default, along with the port 3389 (Remote Desktop in Windows).

We select Ubuntu 16.04.  The order of the operating systems is a bit weird. Ideally, the order should reflect the popularity.

There is an option for Server Guard. Let’s try it since it is free. (it requires to install some closed-source package in our Linux. Eventually I did not try it).

The Ultra Cloud Disk is a network share and it is included in the earlier price. The other option would be to select an SSD. It is nice that we can add up to 16 disks to our server.

We are ready to place the order. It correctly shows $0 and mentions the $50 credit. We select not to auto renew.

Now we pay the $0.

And that’s how we start a server. We have received an email with the IP address but can also find the public IP address from the ECS settings.

Let’s have a look at the IP block for this IP address.

ffs.

How to set up LXD on an Alibaba server

First, we SSH to the server. The command looks like ssh root@_public_ip_address_

It looks like real Ubuntu, with real Ubuntu Linux kernel. Let’s update.

root@iZj6c66d14k19wi7139z9eZ:~# apt update
Get:1 http://mirrors.cloud.aliyuncs.com/ubuntu xenial InRelease [247 kB]
Hit:2 http://mirrors.aliyun.com/ubuntu xenial InRelease

...
Get:45 http://mirrors.aliyun.com/ubuntu xenial-security/universe i386 Packages [147 kB]
Get:46 http://mirrors.aliyun.com/ubuntu xenial-security/universe Translation-en [89.8 kB]
Fetched 40.8 MB in 24s (1682 kB/s)
Reading package lists... Done
Building dependency tree
Reading state information... Done
105 packages can be upgraded. Run 'apt list --upgradable' to see them.
root@iZj6c66d14k19wi7139z9eZ:~#

We upgraded (apt upgrade) and there was a kernel update. We restarted (shutdown -r now) and the newly updated Ubuntu has the updated kernel. Nice!

Let’s check /proc/cpuinfo,

root@iZj6c66d14k19wi7139z9eZ:~# cat /proc/cpuinfo
processor : 0
vendor_id : GenuineIntel
cpu family : 6
model : 63
model name : Intel(R) Xeon(R) CPU E5-2680 v3 @ 2.50GHz
stepping : 2
microcode : 0x1
cpu MHz : 2494.224
cache size : 30720 KB
physical id : 0
siblings : 1
core id : 0
cpu cores : 1
apicid : 0
initial apicid : 0
fpu : yes
fpu_exception : yes
cpuid level : 13
wp : yes
flags : fpu vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat pse36 clflush mmx fxsr sse sse2 ss syscall nx pdpe1gb rdtscp lm constant_tsc rep_good nopl eagerfpu pni pclmulqdq ssse3 fma cx16 pcid sse4_1 sse4_2 x2apic movbe popcnt tsc_deadline_timer aes xsave avx f16c rdrand hypervisor lahf_lm abm fsgsbase bmi1 avx2 smep bmi2 erms invpcid xsaveopt
bugs :
bogomips : 4988.44
clflush size : 64
cache_alignment : 64
address sizes : 46 bits physical, 48 bits virtual
power management:

root@iZj6c66d14k19wi7139z9eZ:/proc#

How much free space from the 40GB disk?

root@iZj6c66d14k19wi7139z9eZ:~# df -h /
Filesystem Size Used Avail Use% Mounted on
/dev/vda1   40G 2,2G 36G 6% /
root@iZj6c66d14k19wi7139z9eZ:~#

Let’s add a non-root user.

root@iZj6c66d14k19wi7139z9eZ:~# adduser myusername
Adding user `myusername' ...
Adding new group `myusername' (1000) ...
Adding new user `myusername' (1000) with group `myusername' ...
Creating home directory `/home/myusername' ...
Copying files from `/etc/skel' ...
Enter new UNIX password:
Retype new UNIX password:
passwd: password updated successfully
Changing the user information for myusername
Enter the new value, or press ENTER for the default
 Full Name []:
 Room Number []:
 Work Phone []:
 Home Phone []:
 Other []:
Is the information correct? [Y/n]
root@iZj6c66d14k19wi7139z9eZ:~#

Is LXD already installed?

root@iZj6c66d14k19wi7139z9eZ:~# apt policy lxd
lxd:
 Installed: (none)
 Candidate: 2.0.10-0ubuntu1~16.04.2
 Version table:
     2.0.10-0ubuntu1~16.04.2 500
         500 http://mirrors.cloud.aliyuncs.com/ubuntu xenial-updates/main amd64 Packages
         500 http://mirrors.aliyun.com/ubuntu xenial-updates/main amd64 Packages
         100 /var/lib/dpkg/status
     2.0.2-0ubuntu1~16.04.1 500
         500 http://mirrors.cloud.aliyuncs.com/ubuntu xenial-security/main amd64 Packages
         500 http://mirrors.aliyun.com/ubuntu xenial-security/main amd64 Packages
     2.0.0-0ubuntu4 500
         500 http://mirrors.cloud.aliyuncs.com/ubuntu xenial/main amd64 Packages
         500 http://mirrors.aliyun.com/ubuntu xenial/main amd64 Packages
root@iZj6c66d14k19wi7139z9eZ:~#

Let’s install LXD.

root@iZj6c66d14k19wi7139z9eZ:~# apt install lxd

Now, we can add our user account myusername to the groups sudo, lxd.

root@iZj6c66d14k19wi7139z9eZ:~# usermod -a -G lxd,sudo myusername
root@iZj6c66d14k19wi7139z9eZ:~#

Let’s copy the SSH public key from root to the new non-root account.

root@iZj6c66d14k19wi7139z9eZ:~# cp -R /root/.ssh ~myusername/
root@iZj6c66d14k19wi7139z9eZ:~# chown -R myusername:myusername ~myusername/.ssh/
root@iZj6c66d14k19wi7139z9eZ:~#

Now, log out and log in as the new non-root account.

$ ssh myusername@IP.IP.IP.IP
Welcome to Ubuntu 16.04.3 LTS (GNU/Linux 4.4.0-96-generic x86_64)

* Documentation: https://help.ubuntu.com
 * Management: https://landscape.canonical.com
 * Support: https://ubuntu.com/advantage

The programs included with the Ubuntu system are free software;
the exact distribution terms for each program are described in the
individual files in /usr/share/doc/*/copyright.

Ubuntu comes with ABSOLUTELY NO WARRANTY, to the extent permitted by
applicable law.

Welcome to Alibaba Cloud Elastic Compute Service !

myusername@iZj6c66d14k19wi7139z9eZ:~$

We are going to install the ZFS utilities so that LXD can use ZFS as a storage backend.

myusername@iZj6c66d14k19wi7139z9eZ:~$ sudo apt install zfsutils-linux
...myusername@iZj6c66d14k19wi7139z9eZ:~$

Now, we can configure LXD. From before, the server had about 35GB free. We are allocating 20GB of that for LXD.

myusername@iZj6c66d14k19wi7139z9eZ:~$ sudo lxd init
sudo: unable to resolve host iZj6c66d14k19wi7139z9eZ
[sudo] password for myusername:  ********
Name of the storage backend to use (dir or zfs) [default=zfs]: zfs
Create a new ZFS pool (yes/no) [default=yes]? yes
Name of the new ZFS pool [default=lxd]: lxd
Would you like to use an existing block device (yes/no) [default=no]? no
Size in GB of the new loop device (1GB minimum) [default=15]: 20
Would you like LXD to be available over the network (yes/no) [default=no]? no
Do you want to configure the LXD bridge (yes/no) [default=yes]? yes
Warning: Stopping lxd.service, but it can still be activated by:
lxd.socket

LXD has been successfully configured.
myusername@iZj6c66d14k19wi7139z9eZ:~$ lxc list
Generating a client certificate. This may take a minute…
If this is your first time using LXD, you should also run: sudo lxd init
To start your first container, try: lxc launch ubuntu:16.04

+——+——-+——+——+——+———–+
| NAME | STATE | IPV4 | IPV6 | TYPE | SNAPSHOTS |
+——+——-+——+——+——+———–+
myusername@iZj6c66d14k19wi7139z9eZ:~$

Okay, we can create now our first LXD container. We are creating just a web server.

myusername@iZj6c66d14k19wi7139z9eZ:~$ lxc launch ubuntu:16.04 web
Creating web
Retrieving image: rootfs: 100% (6.70MB/s)
Starting web
myusername@iZj6c66d14k19wi7139z9eZ:~$

Let’s see the container,

myusername@iZj6c66d14k19wi7139z9eZ:~$ lxc list
+------+---------+---------------------+------+------------+-----------+
| NAME | STATE | IPV4 | IPV6 | TYPE | SNAPSHOTS |
+------+---------+---------------------+------+------------+-----------+
| web | RUNNING | 10.35.87.141 (eth0) | | PERSISTENT | 0 |
+------+---------+---------------------+------+------------+-----------+
myusername@iZj6c66d14k19wi7139z9eZ:~$

Nice. We get into the container and install a web server.

myusername@iZj6c66d14k19wi7139z9eZ:~$ lxc exec web -- sudo --login --user ubuntu

To run a command as administrator (user "root"), use "sudo <command>".
See "man sudo_root" for details.

ubuntu@web:~$

We executed into the web container the command sudo –login –user ubuntu. The container has a default non-root account ubuntu.

ubuntu@web:~$ sudo apt update
Get:1 http://security.ubuntu.com/ubuntu xenial-security InRelease [102 kB]
Hit:2 http://archive.ubuntu.com/ubuntu xenial InRelease
...
Reading state information... Done
3 packages can be upgraded. Run 'apt list --upgradable' to see them.
ubuntu@web:~$ sudo apt install nginx
Reading package lists... Done
...
Processing triggers for ufw (0.35-0ubuntu2) ...
ubuntu@web:~$ sudo vi /var/www/html/index.nginx-debian.html
ubuntu@web:~$ logout
myusername@iZj6c66d14k19wi7139z9eZ:~$ curl 10.35.87.141
<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx running in an LXD container on Alibaba Cloud!</title>
<style>
 body {
 width: 35em;
 margin: 0 auto;
 font-family: Tahoma, Verdana, Arial, sans-serif;
 }
</style>
</head>
<body>
<h1>Welcome to nginx running in an LXD container on Alibaba Cloud!</h1>
<p>If you see this page, the nginx web server is successfully installed and
working. Further configuration is required.</p>

<p>For online documentation and support please refer to
<a href="http://nginx.org/">nginx.org</a>.<br/>
Commercial support is available at
<a href="http://nginx.com/">nginx.com</a>.</p>

<p><em>Thank you for using nginx.</em></p>
</body>
</html>
myusername@iZj6c66d14k19wi7139z9eZ:~$

Obviously, the web server in the container is not accessible from the Internet. We need to do something like add iptables rules to forward appropriately the connection.

Alibaba Cloud gives two IP address per server. One is the public IP address and the other is a private IP address (172.[16-31].*.*). The eth0 interface of the server has that private IP address. This information is important for iptables below.

myusername@iZj6c66d14k19wi7139z9eZ:~$ PORT=80 PUBLIC_IP=my172.IPAddress CONTAINER_IP=10.35.87.141 sudo -E bash -c 'iptables -t nat -I PREROUTING -i eth0 -p TCP -d $PUBLIC_IP --dport $PORT -j DNAT --to-destination $CONTAINER_IP:$PORT -m comment --comment "forward to the Nginx container"'
myusername@iZj6c66d14k19wi7139z9eZ:~$

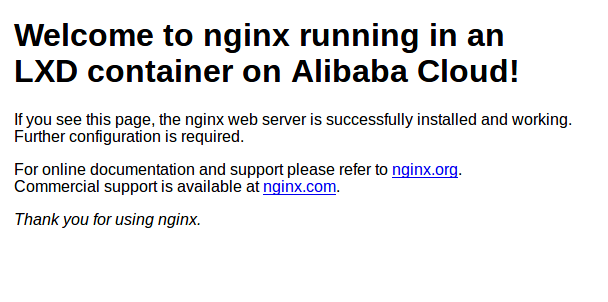

Let’s load up our site using the public IP address from our own computer:

And that’s it!

Conclusion

Alibaba Cloud is yet another provider for cloud services. They are big in China, actually the biggest in China. They are trying to expand to the rest of the world. There are several teething problems, probably arising from the fact that the main website is in Mandarin and there is no infrastructure for immediate translation to English.

On HN there has been a sort of relaunch a few of months ago. It appears there is interest from them to get international users. What they need is people to attend immediately to issues as they are discovered.

If you want to learn more about LXD, see https://stgraber.org/2016/03/11/lxd-2-0-blog-post-series-012/



Update #1

After a day of running a VPS on Alibaba Cloud, I received this email.

From: Alibaba Cloud
Subject: 【Immediate Attention Needed】Alibaba Cloud Fraud Prevention

We have detected a security risk with the card you are using to make purchases. In order to protect your account, please provide your account ID and the following information within one working day via your registered Alibaba Cloud email to compliance_support@aliyun.com for further investigation.

If you are using a credit card as your payment method, please provide the following information directly. Please provide clear copies of:

1. Any ONE of the following three forms of government-issued photo identification for the credit card holder or payment account holder of this Alibaba Cloud account: (i) National identification card; (ii) Passport; (iii) Driver's License.
2. A clear copy of the front side of your credit card in connection with this Alibaba Account; (Note: For security reasons, we advise you to conceal the middle digits of your card number. Please make sure that the card holder's name, card issuing bank and the last four digits of the card number are clearly visible).
3. A clear copy of your card's bank statement. We will process your case within 3 working days of receiving the information listed above. NOTE: Please do not provide information in this ticket. All the information needed should be sent to this email compliance_support@aliyun.com.

If you fail to provide all the above information within one working day , your instances will be shut down.

Best regards,

Alibaba Cloud Customer Service Center

What this means, is that update #2 has to happen now.



Update #2

Newer versions of LXD have a utility called lxd-benchmark. This utility spawns, starts and stops containers, and can be used to have an idea how efficient a server may be. I suppose primarily it is used to figure out if there is a regression in the LXD code. Let see it anyway in action here, the clock is ticking.

The new LXD is in a PPA at https://launchpad.net/~ubuntu-lxc/+archive/ubuntu/lxd-stable Let’s install it on Alibaba Cloud.

sudo apt-get install software-properties-common
sudo add-apt-repository ppa:ubuntu-lxc/lxd-stable
sudo apt updatesudo apt upgrade                   # Now LXD will be upgraded.sudo apt install lxd-tools         # Now lxd-benchmark will be installed.

Let’s see the options for lxd-benchmark.

Usage: lxd-benchmark spawn [--count=COUNT] [--image=IMAGE] [--privileged=BOOL] [--start=BOOL] [--freeze=BOOL] [--parallel=COUNT]
 lxd-benchmark start [--parallel=COUNT]
 lxd-benchmark stop [--parallel=COUNT]
 lxd-benchmark delete [--parallel=COUNT]

--count (= 100)
 Number of containers to create
 --freeze (= false)
 Freeze the container right after start
 --image (= "ubuntu:")
 Image to use for the test
 --parallel (= -1)
 Number of threads to use
 --privileged (= false)
 Use privileged containers
 --report-file (= "")
 A CSV file to write test file to. If the file is present, it will be appended to.
 --report-label (= "")
 A label for the report entry. By default, the action is used.
 --start (= true)
 Start the container after creation

First, we need to spawn new containers that we can later start, stop or delete. Ideally, I would expect the terminology to be launch instead of spawn, to keep in sync with the existing container management commands.

Second, there are defaults for each command as shown above. There is no indication yet as to how much RAM you need to spawn the default 100 containers. Obviously it would be more than the 1GB RAM we have on this server. Regarding the disk space, that would be fine because of copy-on-write with ZFS; any newly created LXD container does not use up additional space as they all are based on the space of the first container. Perhaps after a day when unattended-upgrades kicks in, each container would use up some space for any required security updates that get automatically applied.

Let’s try out with 3 containers. We have stopped and deleted the original web container that we have created in this tutorial (lxc stop web ; lxc delete web).

$ lxd-benchmark spawn --count 3
Test environment:
 Server backend: lxd
 Server version: 2.18
 Kernel: Linux
 Kernel architecture: x86_64
 Kernel version: 4.4.0-96-generic
 Storage backend: zfs
 Storage version: 0.6.5.6-0ubuntu16
 Container backend: lxc
 Container version: 2.1.0

Test variables:
 Container count: 3
 Container mode: unprivileged
 Startup mode: normal startup
 Image: ubuntu:
 Batches: 3
 Batch size: 1
 Remainder: 0

[Sep 27 17:31:41.074] Importing image into local store: 03c2fa6716b5f41684457ca5e1b7316df520715b7fea0378f9306d16fdc646ee
[Sep 27 17:32:12.825] Found image in local store: 03c2fa6716b5f41684457ca5e1b7316df520715b7fea0378f9306d16fdc646ee
[Sep 27 17:32:12.825] Batch processing start
[Sep 27 17:32:37.614] Processed 1 containers in 24.790s (0.040/s)
[Sep 27 17:32:42.611] Processed 2 containers in 29.786s (0.067/s)
[Sep 27 17:32:49.110] Batch processing completed in 36.285s
$ lxc list --columns ns4tS
+-------------+---------+---------------------+------------+-----------+
| NAME        | STATE   | IPV4                | TYPE       | SNAPSHOTS |
+-------------+---------+---------------------+------------+-----------+
| benchmark-1 | RUNNING | 10.35.87.252 (eth0) | PERSISTENT | 0         |
+-------------+---------+---------------------+------------+-----------+
| benchmark-2 | RUNNING | 10.35.87.115 (eth0) | PERSISTENT | 0         |
+-------------+---------+---------------------+------------+-----------+
| benchmark-3 | RUNNING | 10.35.87.72 (eth0)  | PERSISTENT | 0         |
+-------------+---------+---------------------+------------+-----------+
| web         | RUNNING | 10.35.87.141 (eth0) | PERSISTENT | 0         |
+-------------+---------+---------------------+------------+-----------+
$

We created three extra containers, named benchmark-?, and got them started. There were launched in three batches, which means that one was started after another, not in parallel.

The total time on this server, when the storage backend is zfs, was 36.2 seconds. It is not clear what the numbers in the parenthesis mean at Processed 1 containers in 18.770s (0.053/s).

The total time on this server, when the storage backend was dir, was 68.6 instead.

Let’s stop them!

$ lxd-benchmark stop
Test environment:
 Server backend: lxd
 Server version: 2.18
 Kernel: Linux
 Kernel architecture: x86_64
 Kernel version: 4.4.0-96-generic
 Storage backend: zfs
 Storage version: 0.6.5.6-0ubuntu16
 Container backend: lxc
 Container version: 2.1.0

[Sep 27 18:06:08.822] Stopping 3 containers
[Sep 27 18:06:08.822] Batch processing start
[Sep 27 18:06:09.680] Processed 1 containers in 0.858s (1.165/s)
[Sep 27 18:06:10.543] Processed 2 containers in 1.722s (1.162/s)
[Sep 27 18:06:11.406] Batch processing completed in 2.584s
$

With dir, it was around 2.4 seconds.

And then delete them!

$ lxd-benchmark delete
Test environment:
 Server backend: lxd
 Server version: 2.18
 Kernel: Linux
 Kernel architecture: x86_64
 Kernel version: 4.4.0-96-generic
 Storage backend: zfs
 Storage version: 0.6.5.6-0ubuntu16
 Container backend: lxc
 Container version: 2.1.0

[Sep 27 18:07:12.020] Deleting 3 containers
[Sep 27 18:07:12.020] Batch processing start
[Sep 27 18:07:12.130] Processed 1 containers in 0.110s (9.116/s)
[Sep 27 18:07:12.224] Processed 2 containers in 0.204s (9.814/s)
[Sep 27 18:07:12.317] Batch processing completed in 0.297s
$

With dir, it was 2.5 seconds.

Let’s create three containers in parallel.

$ lxd-benchmark spawn --count=3 --parallel=3
Test environment:
 Server backend: lxd
 Server version: 2.18
 Kernel: Linux
 Kernel architecture: x86_64
 Kernel version: 4.4.0-96-generic
 Storage backend: zfs
 Storage version: 0.6.5.6-0ubuntu16
 Container backend: lxc
 Container version: 2.1.0

Test variables:
 Container count: 3
 Container mode: unprivileged
 Startup mode: normal startup
 Image: ubuntu:
 Batches: 1
 Batch size: 3
 Remainder: 0

[Sep 27 18:11:01.570] Found image in local store: 03c2fa6716b5f41684457ca5e1b7316df520715b7fea0378f9306d16fdc646ee
[Sep 27 18:11:01.570] Batch processing start
[Sep 27 18:11:11.574] Processed 3 containers in 10.004s (0.300/s)
[Sep 27 18:11:11.574] Batch processing completed in 10.004s
$

With dir, it was 58.7 seconds.

Let’s push it further and try to hit some memory limits! First, we delete all, and launch 5 in parallel.

$ lxd-benchmark spawn --count=5 --parallel=5
Test environment:
 Server backend: lxd
 Server version: 2.18
 Kernel: Linux
 Kernel architecture: x86_64
 Kernel version: 4.4.0-96-generic
 Storage backend: zfs
 Storage version: 0.6.5.6-0ubuntu16
 Container backend: lxc
 Container version: 2.1.0

Test variables:
 Container count: 5
 Container mode: unprivileged
 Startup mode: normal startup
 Image: ubuntu:
 Batches: 1
 Batch size: 5
 Remainder: 0

[Sep 27 18:13:11.171] Found image in local store: 03c2fa6716b5f41684457ca5e1b7316df520715b7fea0378f9306d16fdc646ee
[Sep 27 18:13:11.172] Batch processing start
[Sep 27 18:13:33.461] Processed 5 containers in 22.290s (0.224/s)
[Sep 27 18:13:33.461] Batch processing completed in 22.290s
$

So, 5 containers can start in 1GB of RAM, in just 22 seconds.

We also tried the same with the dir storage backend, and got

[Sep 27 17:24:16.409] Batch processing start
[Sep 27 17:24:54.508] Failed to spawn container 'benchmark-5': Unpack failed, Failed to run: unsquashfs -f -d /var/lib/lxd/storage-pools/default/containers/benchmark-5/rootfs -n -da 99 -fr 99 -p 1 /var/lib/lxd/images/03c2fa6716b5f41684457ca5e1b7316df520715b7fea0378f9306d16fdc646ee.rootfs: .
[Sep 27 17:25:11.129] Failed to spawn container 'benchmark-3': Unpack failed, Failed to run: unsquashfs -f -d /var/lib/lxd/storage-pools/default/containers/benchmark-3/rootfs -n -da 99 -fr 99 -p 1 /var/lib/lxd/images/03c2fa6716b5f41684457ca5e1b7316df520715b7fea0378f9306d16fdc646ee.rootfs: .
[Sep 27 17:25:35.906] Processed 5 containers in 79.496s (0.063/s)
[Sep 27 17:25:35.906] Batch processing completed in 79.496s

Out of the five containers, it managed to create 3 (No 1, 3, 4). The reason is that unsquashfs needs to run to expand an image, and that process uses a lot of memory. When using zfs, the same process probably does not need that much memory.

Let’s delete the five containers (storage backend: zfs):

[Sep 27 18:18:37.432] Batch processing completed in 5.006s

Let’s close the post with

$ lxd-benchmark spawn --count=10 --parallel=5
Test environment:
 Server backend: lxd
 Server version: 2.18
 Kernel: Linux
 Kernel architecture: x86_64
 Kernel version: 4.4.0-96-generic
 Storage backend: zfs
 Storage version: 0.6.5.6-0ubuntu16
 Container backend: lxc
 Container version: 2.1.0

Test variables:
 Container count: 10
 Container mode: unprivileged
 Startup mode: normal startup
 Image: ubuntu:
 Batches: 2
 Batch size: 5
 Remainder: 0

[Sep 27 18:19:44.706] Found image in local store: 03c2fa6716b5f41684457ca5e1b7316df520715b7fea0378f9306d16fdc646ee
[Sep 27 18:19:44.706] Batch processing start
[Sep 27 18:20:07.705] Processed 5 containers in 22.998s (0.217/s)
[Sep 27 18:20:57.114] Processed 10 containers in 72.408s (0.138/s)
[Sep 27 18:20:57.114] Batch processing completed in 72.408s

We launched 10 containers in two batches of five containers each. The lxd-benchmark command completed successfully, in just 72 seconds. However, after the command completed, each container would start up, get an IP and get working. We hit the memory limit when the second batch of five containers where starting up. The network monitor on the Alibaba Cloud management console shows 100% CPU utilization, and it is not possible to access the server over SSH. Let’s delete the server from the management console and wind down this trial of Alibaba Cloud.

lxd-benchmark is quite useful and can be used to get practical understanding as to how many containers can make it on a server and much more.

Update #3

I just restarted the server from the management console and connected using SSH.

Here are the ten containers from Update #2,

$ lxc list --columns ns4
+--------------+---------+------+
| NAME         | STATE   | IPV4 |
+--------------+---------+------+
| benchmark-01 | STOPPED |      |
+--------------+---------+------+
| benchmark-02 | STOPPED |      |
+--------------+---------+------+
| benchmark-03 | STOPPED |      |
+--------------+---------+------+
| benchmark-04 | STOPPED |      |
+--------------+---------+------+
| benchmark-05 | STOPPED |      |
+--------------+---------+------+
| benchmark-06 | STOPPED |      |
+--------------+---------+------+
| benchmark-07 | STOPPED |      |
+--------------+---------+------+
| benchmark-08 | STOPPED |      |
+--------------+---------+------+
| benchmark-09 | STOPPED |      |
+--------------+---------+------+
| benchmark-10 | STOPPED |      |
+--------------+---------+------+

The containers are in the stopped state. That is, they do not consume memory. How much free memory is there?

$ free
       total  used   free shared buff/cache available
Mem: 1016020 56192 791752 2928 168076 805428
Swap:      0     0      0

About 792MB free memory.

There is not enough memory to get them all to run at the same time. It is good that they get into the stopped state when you reboot, so that you can fix.

post image

How to install LXD/LXC containers on Ubuntu on cloudscale.ch

In previous posts, we saw how to configure LXD/LXC containers on a VPS on DigitalOcean and Scaleway. There are many more VPS companies.

cloudscale.ch is one more company that provides Virtual Private Servers (VPS). They are based in Switzerland.

In this post we are going to see how to create a VPS on cloudscale.ch and configure to use LXD/LXC containers.

We now use the term LXD/LXC containers (instead of LXC containers in previous articles) in order to show the LXD is a management service for LXC containers; LXD works on top of LXC. Somewhat similar to GNU/Linux where GNU software is running over the Linux kernel.

Set up the VPS

cloudscale1

We are creating a VPS called myubuntuserver, using the Flex-2 Compute Flavor. This is the most affordable, at 2GB RAM with 1 vCPU core. It costs 1 CHF, which is about 0.92€ (or US$1).

The default capacity is 10GB, which is included in the 1 CHF per day. If you want more capacity, there is extra charging.

cloudscale2

We are installing Ubuntu 16.04 and accept the rest of the default settings. Currently, there is only one server location at Rümlang, near Zurich (the capital city of Switzerland).

cloudscale4

Here is the summary of the freshly launched VPS server. The IP address is shown as well.

Connect and update the VPS

In order to connect, we need to SSH to that IP address using the fixed username ubuntu. There is an option to either password authentication or public-key authentication. Let’s connect.

myusername@mycomputer:~$ ssh ubuntu@5.102.145.245
Welcome to Ubuntu 16.04 LTS (GNU/Linux 4.4.0-24-generic x86_64)

* Documentation: https://help.ubuntu.com/

Get cloud support with Ubuntu Advantage Cloud Guest:
 http://www.ubuntu.com/business/services/cloud

0 packages can be updated.
0 updates are security updates.

The programs included with the Ubuntu system are free software;
the exact distribution terms for each program are described in the
individual files in /usr/share/doc/*/copyright.

Ubuntu comes with ABSOLUTELY NO WARRANTY, to the extent permitted by
applicable law.

To run a command as administrator (user "root"), use "sudo <command>".
See "man sudo_root" for details.

ubuntu@myubuntuserver:~$

Let’s update the package list,

ubuntu@myubuntuserver:~$ sudo apt update
Hit:1 http://ch.archive.ubuntu.com/ubuntu xenial InRelease
Get:2 http://ch.archive.ubuntu.com/ubuntu xenial-updates InRelease [95.7 kB]
...
Get:31 http://security.ubuntu.com/ubuntu xenial-security/multiverse amd64 Packages [1176 B]
Fetched 10.5 MB in 2s (4707 kB/s)
Reading package lists... Done
Building dependency tree
Reading state information... Done
67 packages can be upgraded. Run 'apt list --upgradable' to see them.
ubuntu@myubuntuserver:~$ sudo apt upgrade
Reading package lists... Done
Building dependency tree
...
Processing triggers for libc-bin (2.23-0ubuntu3) ...
ubuntu@myubuntuserver:~$

In this case, we updated 67 packages, among which was lxd. It was important to perform the upgrade of packages.

Configure LXD/LXC

Let’s see how much free disk space is there,

ubuntu@myubuntuserver:~$ df -h /
Filesystem Size Used Avail Use% Mounted on
/dev/vda1  9.7G 1.2G  8.6G 12%  /
ubuntu@myubuntuserver:~$

There is 8.6GB of free space, let’s allocate 5GB of that for the ZFS pool. First, we need to install the package zfsutils-linux. Then, initialize lxd.

ubuntu@myubuntuserver:~$ sudo apt install zfsutils-linux
Reading package lists... Done
...
Processing triggers for ureadahead (0.100.0-19) ...
ubuntu@myubuntuserver:~$ sudo lxd init
Name of the storage backend to use (dir or zfs): zfs
Create a new ZFS pool (yes/no)? yes
Name of the new ZFS pool: myzfspool
Would you like to use an existing block device (yes/no)? no
Size in GB of the new loop device (1GB minimum): 5
Would you like LXD to be available over the network (yes/no)? no
Do you want to configure the LXD bridge (yes/no)? yes
...accept the network autoconfiguration settings that you will be asked...
LXD has been successfully configured.
ubuntu@myubuntuserver:~$

That’s it! We are good to go and configure our first LXD/LXC container.

Testing a container as a Web server

Let’s test LXD/LXC by creating a container, installing nginx and accessing from remote.

ubuntu@myubuntuserver:~$ lxc launch ubuntu:x web
Creating web
Retrieving image: 100%
Starting web
ubuntu@myubuntuserver:~$

We launched a container called web.

Let’s connect to the container, update the package list and upgrade any available packages.

ubuntu@myubuntuserver:~$ lxc exec web -- /bin/bash
root@web:~# apt update
Hit:1 http://archive.ubuntu.com/ubuntu xenial InRelease
...
9 packages can be upgraded. Run 'apt list --upgradable' to see them.
root@web:~# apt upgrade
Reading package lists... Done
...
Processing triggers for initramfs-tools (0.122ubuntu8.1) ...
root@web:~#

Still inside the container, we install nginx.

root@web:~# apt install nginx
Reading package lists... Done
...
Processing triggers for ufw (0.35-0ubuntu2) ...
root@web:~#

Let’s make a small change in the default index.html,

root@web:/var/www/html# diff -u /var/www/html/index.nginx-debian.html.ORIGINAL /var/www/html/index.nginx-debian.html
--- /var/www/html/index.nginx-debian.html.ORIGINAL 2016-08-09 17:08:16.450844570 +0000
+++ /var/www/html/index.nginx-debian.html 2016-08-09 17:08:45.543247231 +0000
@@ -1,7 +1,7 @@
 <!DOCTYPE html>
 <html>
 <head>
-<title>Welcome to nginx!</title>
+<title>Welcome to nginx on an LXD/LXC container on Ubuntu at cloudscale.ch!</title>
 <style>
 body {
 width: 35em;
@@ -11,7 +11,7 @@
 </style>
 </head>
 <body>
-<h1>Welcome to nginx!</h1>
+<h1>Welcome to nginx on an LXD/LXC container on Ubuntu at cloudscale.ch!</h1>
 <p>If you see this page, the nginx web server is successfully installed and
 working. Further configuration is required.</p>

root@web:/var/www/html#

Finally, let’s add a quick and dirty iptables rule to make the container accessible from the Internet.

root@web:/var/www/html# exit
ubuntu@myubuntuserver:~$ lxc list
+------+---------+---------------------+------+------------+-----------+
| NAME | STATE   | IPV4                | IPV6 | TYPE       | SNAPSHOTS |
+------+---------+---------------------+------+------------+-----------+
| web  | RUNNING | 10.5.242.156 (eth0) |      | PERSISTENT | 0         |
+------+---------+---------------------+------+------------+-----------+
ubuntu@myubuntuserver:~$ ifconfig ens3
ens3 Link encap:Ethernet HWaddr fa:16:3e:ad:dc:2c
 inet addr:5.102.145.245 Bcast:5.102.145.255 Mask:255.255.255.0
 inet6 addr: fe80::f816:3eff:fead:dc2c/64 Scope:Link
 UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
 RX packets:102934 errors:0 dropped:0 overruns:0 frame:0
 TX packets:35613 errors:0 dropped:0 overruns:0 carrier:0
 collisions:0 txqueuelen:1000
 RX bytes:291995591 (291.9 MB) TX bytes:3265570 (3.2 MB)

ubuntu@myubuntuserver:~$

Therefore, the iptables command that will allow access to the container is,

ubuntu@myubuntuserver:~$ sudo iptables -t nat -I PREROUTING -i ens3 -p TCP -d 5.102.145.245/32 --dport 80 -j DNAT --to-destination 10.5.242.156:80
ubuntu@myubuntuserver:~$

Here is the result when we visit the new Web server from our computer,

cloudscale-nginx

Benchmarks

We are benchmarking the CPU, the memory and the disk. Note that our VPS has a single vCPU.

CPU

We are benchmarking the CPU using sysbench with the following parameters.

ubuntu@myubuntuserver:~$ sysbench --num-threads=1 --test=cpu run
sysbench 0.4.12: multi-threaded system evaluation benchmark

Running the test with following options:
Number of threads: 1

Doing CPU performance benchmark

Threads started!
Done.

Maximum prime number checked in CPU test: 10000


Test execution summary:
 total time: 10.9448s
 total number of events: 10000
 total time taken by event execution: 10.9429
 per-request statistics:
 min: 0.96ms
 avg: 1.09ms
 max: 2.79ms
 approx. 95 percentile: 1.27ms

Threads fairness:
 events (avg/stddev): 10000.0000/0.00
 execution time (avg/stddev): 10.9429/0.00

ubuntu@myubuntuserver:~$

The total time for the CPU benchmark with one thread was 10.94s. With two threads, it was 10.23s. With four threads, it was 10.07s.

Memory

We are benchmarking the memory using sysbench with the following parameters.

ubuntu@myubuntuserver:~$ sysbench --num-threads=1 --test=memory run
sysbench 0.4.12: multi-threaded system evaluation benchmark

Running the test with following options:
Number of threads: 1

Doing memory operations speed test
Memory block size: 1K

Memory transfer size: 102400M

Memory operations type: write
Memory scope type: global
Threads started!
Done.

Operations performed: 104857600 (1768217.45 ops/sec)

102400.00 MB transferred (1726.77 MB/sec)


Test execution summary:
 total time: 59.3013s
 total number of events: 104857600
 total time taken by event execution: 47.2179
 per-request statistics:
 min: 0.00ms
 avg: 0.00ms
 max: 0.80ms
 approx. 95 percentile: 0.00ms

Threads fairness:
 events (avg/stddev): 104857600.0000/0.00
 execution time (avg/stddev): 47.2179/0.00

ubuntu@myubuntuserver:~$

The total time for the memory benchmark with one thread was 59.30s. With two threads, it was 62.17s. With four threads, it was 62.57s.

Disk

We are benchmarking the disk using dd with the following parameters.

ubuntu@myubuntuserver:~$ dd if=/dev/zero of=testfile bs=1M count=1024 oflag=dsync
1024+0 records in
1024+0 records out
1073741824 bytes (1,1 GB, 1,0 GiB) copied, 21,1995 s, 50,6 MB/s
ubuntu@myubuntuserver:~$





It took about 21 seconds to create 1024 files of 1MB each, with the DSYNC flag. The throughput was 50.6MB/s. Subsequent invocation were around 50MB/s as well.

ZFS pool free space

Here is the free space in the ZFS pool after one container, that one with nginx and other packages updated,

ubuntu@myubuntuserver:~$ sudo zpool list
NAME       SIZE ALLOC  FREE EXPANDSZ FRAG CAP DEDUP HEALTH ALTROOT
myzfspool 4,97G  811M 4,18G        -  11% 15% 1.00x ONLINE       -
ubuntu@myubuntuserver:~$

Again, after a second container was just created, (new and empty)

ubuntu@myubuntuserver:~$ sudo zpool list
NAME       SIZE ALLOC  FREE EXPANDSZ FRAG CAP DEDUP HEALTH ALTROOT
myzfspool 4,97G  822M 4,17G        -  11% 16% 1.00x ONLINE       -
ubuntu@myubuntuserver:~$

Thanks for Copy-on-Write with ZFS, the new containers do not take up much space. The files that are added or updated, would contribute to the additional space.

Conclusion

We saw how to launch an Ubuntu 16.04 VPS on cloudscale.ch, then configure LXD.

We created a container with nginx, and configured iptables so that the Web server is accessible from the Internet.

Finally, we see some benchmarks for the vCPU, the memory and the disk.

post image

How to set up multiple secure (SSL/TLS, Qualys SSL Labs A+) websites using LXD containers

In previous posts we saw how to set up LXD on a DigitalOcean VPS, how to set up LXD on a Scaleway VPS, and how the lifecycle of an LXD container looks like.

In this post, we are going to

  1. Create multiple websites, each in a separate LXD container
  2. Install HAProxy as a TLS Termination Proxy, in an LXD container
  3. Configure HAProxy so that each website is only accessible through TLS
  4. Perform the SSL Server Test so that our websites really get the A+!

In this post, we are not going to install WordPress (or other CMS) on the websites. We keep this post simple as that is material for our next post.

The requirements are

Set up a VPS

We are using DigitalOcean in this example.

do-create-droplet-16041

Ubuntu 16.04.1 LTS was released a few days ago and DigitalOcean changed the Ubuntu default to 16.04.1. This is nice.

We are trying out the smallest droplet in order to figure out how many websites we can squeeze in containers. That is, 512MB RAM on a single virtual CPU core, at only 20GB disk space!

In this example we are not using the new DigitalOcean block storage as at the moment it is available in only two datacentres.

Let’s click on the Create droplet button and the VPS is created!

Initial configuration

We are using DigitalOcean in this HowTo, and we have covered the initial configuration in this previous post.

https://blog.simos.info/trying-out-lxd-containers-on-ubuntu-on-digitalocean/

Go through the post and perform the tasks described in section «Set up LXD on DigitalOcean».

Creating the containers

We create three containers for three websites, plus one container for HAProxy.

ubuntu@ubuntu-512mb-ams3-01:~$ lxc init ubuntu:x web1
Creating web1
Retrieving image: 100%
ubuntu@ubuntu-512mb-ams3-01:~$ time lxc init ubuntu:x web2
Creating web2

real    0m6.620s
user    0m0.016s
sys    0m0.004s
ubuntu@ubuntu-512mb-ams3-01:~$ time lxc init ubuntu:x web3
Creating web3

real    1m15.723s
user    0m0.012s
sys    0m0.020s
ubuntu@ubuntu-512mb-ams3-01:~$ time lxc init ubuntu:x haproxy
Creating haproxy

real    0m48.747s
user    0m0.012s
sys    0m0.012s
ubuntu@ubuntu-512mb-ams3-01:~$

Normally it takes a few seconds for a new container to initialize. Remember that we are squeezing here, it’s a 512MB VPS, and the ZFS pool is stored on a file (not a block device)! We are looking into the kernel messages of the VPS for lines similar to «Out of memory: Kill process 3829 (unsquashfs) score 524 or sacrifice child», which indicate that we reached the memory limit. While preparing this blog post, there were a couple of Out of memory kills, so I made sure that nothing critical was dying. If this is too much for you, you can select a 1GB RAM (or more) VPS and start over.

Let’s start the containers up!

ubuntu@ubuntu-512mb-ams3-01:~$ lxc start web1 web2 web3 haproxy
ubuntu@ubuntu-512mb-ams3-01:~$ lxc list
+---------+---------+-----------------------+------+------------+-----------+
|  NAME   |  STATE  |         IPV4          | IPV6 |    TYPE    | SNAPSHOTS |
+---------+---------+-----------------------+------+------------+-----------+
| haproxy | RUNNING | 10.234.150.39 (eth0)  |      | PERSISTENT | 0         |
+---------+---------+-----------------------+------+------------+-----------+
| web1    | RUNNING | 10.234.150.169 (eth0) |      | PERSISTENT | 0         |
+---------+---------+-----------------------+------+------------+-----------+
| web2    | RUNNING | 10.234.150.119 (eth0) |      | PERSISTENT | 0         |
+---------+---------+-----------------------+------+------------+-----------+
| web3    | RUNNING | 10.234.150.51 (eth0)  |      | PERSISTENT | 0         |
+---------+---------+-----------------------+------+------------+-----------+
ubuntu@ubuntu-512mb-ams3-01:~$

You may need to run lxc list a few times until you make sure that all containers got an IP address. That means that they all completed their startup.

DNS configuration

The public IP address of this specific VPS is 188.166.10.229. For this test, I am using the domain ubuntugreece.xyz as follows:

  1. Container web1: ubuntugreece.xyz and www.ubuntugreece.xyz have IP 188.166.10.229
  2. Container web2: web2.ubuntugreece.xyz has IP 188.166.10.229
  3. Container web3: web3.ubuntugreece.xyz has IP 188.166.10.229

Here is how it looks when configured on a DNS management console,

namecheap-configuration-containers

From here and forward, it is a waiting game until these DNS configurations are propagated to the rest of the Internet. We need to wait until those hostnames resolve into their IP address.

ubuntu@ubuntu-512mb-ams3-01:~$ host ubuntugreece.xyz
ubuntugreece.xyz has address 188.166.10.229
ubuntu@ubuntu-512mb-ams3-01:~$ host web2.ubuntugreece.xyz
Host web2.ubuntugreece.xyz not found: 3(NXDOMAIN)
ubuntu@ubuntu-512mb-ams3-01:~$ host web3.ubuntugreece.xyz
web3.ubuntugreece.xyz has address 188.166.10.229
ubuntu@ubuntu-512mb-ams3-01:~$

These are the results after ten minutes. ubuntugreece.xyz and web3.ubuntugreece.xyz are resolving fine, while web2.ubuntugreece.xyz needs a bit more time.

We can continue! (and ignore for now web2)

Web server configuration

Let’s see the configuration for web1. You must repeat the following for web2 and web3.

We install the nginx web server,

ubuntu@ubuntu-512mb-ams3-01:~$ lxc exec web1 — /bin/bash
root@web1:~# apt update
Get:1 http://security.ubuntu.com/ubuntu xenial-security InRelease [94.5 kB]

3 packages can be upgraded. Run ‘apt list –upgradable’ to see them.
root@web1:~# apt upgrade
Reading package lists… Done

Processing triggers for initramfs-tools (0.122ubuntu8.1) …
root@web1:~# apt install nginx
Reading package lists… Done

Processing triggers for ufw (0.35-0ubuntu2) …
root@web1:~#

nginx needs to be configured so that it understands the domain name for web1. Here is the diff,

diff --git a/etc/nginx/sites-available/default b/etc/nginx/sites-available/default
index a761605..b2cea8f 100644
--- a/etc/nginx/sites-available/default
+++ b/etc/nginx/sites-available/default
@@ -38,7 +38,7 @@ server {
        # Add index.php to the list if you are using PHP
        index index.html index.htm index.nginx-debian.html;

-       server_name _;
+       server_name ubuntugreece.xyz www.ubuntugreece.xyz;

        location / {
                # First attempt to serve request as file, then

and finally we restart nginx and exit the web1 container,

root@web1:/etc/nginx/sites-enabled# systemctl restart nginx
root@web1:/etc/nginx/sites-enabled# exit
exit
ubuntu@ubuntu-512mb-ams3-01:~$

Forwarding connections to the HAProxy container

We are about the set up the HAProxy container. Let’s add iptables rules to perform the forwarding of connections to ports 80 and 443 on the VPS, to the HAProxy container.

ubuntu@ubuntu-512mb-ams3-01:~$ ifconfig eth0
eth0      Link encap:Ethernet  HWaddr 04:01:36:50:00:01
          inet addr:188.166.10.229  Bcast:188.166.63.255  Mask:255.255.192.0
          inet6 addr: fe80::601:36ff:fe50:1/64 Scope:Link
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:40513 errors:0 dropped:0 overruns:0 frame:0
          TX packets:26362 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:360767509 (360.7 MB)  TX bytes:3863846 (3.8 MB)

ubuntu@ubuntu-512mb-ams3-01:~$ lxc list
+---------+---------+-----------------------+------+------------+-----------+
|  NAME   |  STATE  |         IPV4          | IPV6 |    TYPE    | SNAPSHOTS |
+---------+---------+-----------------------+------+------------+-----------+
| haproxy | RUNNING | 10.234.150.39 (eth0)  |      | PERSISTENT | 0         |
+---------+---------+-----------------------+------+------------+-----------+
| web1    | RUNNING | 10.234.150.169 (eth0) |      | PERSISTENT | 0         |
+---------+---------+-----------------------+------+------------+-----------+
| web2    | RUNNING | 10.234.150.119 (eth0) |      | PERSISTENT | 0         |
+---------+---------+-----------------------+------+------------+-----------+
| web3    | RUNNING | 10.234.150.51 (eth0)  |      | PERSISTENT | 0         |
+---------+---------+-----------------------+------+------------+-----------+
ubuntu@ubuntu-512mb-ams3-01:~$ sudo iptables -t nat -I PREROUTING -i eth0 -p TCP -d 188.166.10.229/32 --dport 80 -j DNAT --to-destination 10.234.150.39:80
[sudo] password for ubuntu:
ubuntu@ubuntu-512mb-ams3-01:~$ sudo iptables -t nat -I PREROUTING -i eth0 -p TCP -d 188.166.10.229/32 --dport 443 -j DNAT --to-destination 10.234.150.39:443
ubuntu@ubuntu-512mb-ams3-01:~$

If you want to make those changes permanent, see Saving Iptables Firewall Rules Permanently (the part about the package iptables-persistent).

HAProxy initial configuration

Let’s see how to configure HAProxy in container haproxy. We enter the container, update the software and install the haproxy package.

ubuntu@ubuntu-512mb-ams3-01:~$ lxc exec haproxy -- /bin/bash
root@haproxy:~# apt update
Hit:1 http://archive.ubuntu.com/ubuntu xenial InRelease
...
3 packages can be upgraded. Run 'apt list --upgradable' to see them.
root@haproxy:~# apt upgrade
Reading package lists... Done
...
Processing triggers for initramfs-tools (0.122ubuntu8.1) ...
root@haproxy:~# apt install haproxy
Reading package lists... Done
...
Processing triggers for ureadahead (0.100.0-19) ...
root@haproxy:~#

We add the following configuration to /etc/haproxy/haproxy.conf. Initially, we do not have any certificates for TLS, but we need the Web servers to work with plain HTTP in order for Let’s Encrypt to be able to verify we own the websites. Therefore, here is the complete configuration, with two lines commented out (they start with ###) so that HTTP can work. As soon as we deal with Let’s Encrypt, we go full TLS (by uncommenting the two lines that start with ###) and never look back. We mention when to uncomment later in the post.

diff --git a/etc/haproxy/haproxy.cfg b/etc/haproxy/haproxy.cfg
index 86da67d..f6f2577 100644
--- a/etc/haproxy/haproxy.cfg
+++ b/etc/haproxy/haproxy.cfg
@@ -18,11 +18,17 @@ global
     ssl-default-bind-ciphers ECDH+AESGCM:DH+AESGCM:ECDH+AES256:DH+AES256:ECDH+AES128:DH+AES:ECDH+3DES:DH+3DES:RSA+AESGCM:RSA+AES:RSA+3DES:!aNULL:!MD5:!DSS
     ssl-default-bind-options no-sslv3

+        # Minimum DH ephemeral key size. Otherwise, this size would drop to 1024.
+        # @link: https://cbonte.github.io/haproxy-dconv/configuration-1.5.html#3.2-tune.ssl.default-dh-param
+        tune.ssl.default-dh-param 2048
+
 defaults
     log    global
     mode    http
     option    httplog
     option    dontlognull
+        option  forwardfor
+        option  http-server-close
         timeout connect 5000
         timeout client  50000
         timeout server  50000
@@ -33,3 +39,56 @@ defaults
     errorfile 502 /etc/haproxy/errors/502.http
     errorfile 503 /etc/haproxy/errors/503.http
     errorfile 504 /etc/haproxy/errors/504.http
+
+# Configuration of the frontend (HAProxy as a TLS Termination Proxy)
+frontend www_frontend
+    # We bind on port 80 (http) but (see below) get HAProxy to force-switch to HTTPS.
+    bind *:80
+    # We bind on port 443 (https) and specify a directory with the certificates.
+####    bind *:443 ssl crt /etc/haproxy/certs/
+    # We get HAProxy to force-switch to HTTPS, if the connection was just HTTP.
+####    redirect scheme https if !{ ssl_fc }
+    # TLS terminates at HAProxy, the container runs in plain HTTP. Here, HAProxy informs nginx
+    # that there was a TLS Termination Proxy. Required for WordPress and other CMS.
+    reqadd X-Forwarded-Proto:\ https
+
+    # Distinguish between secure and insecure requestsa (used in next two lines)
+    acl secure dst_port eq 443
+
+    # Mark all cookies as secure if sent over SSL
+    rsprep ^Set-Cookie:\ (.*) Set-Cookie:\ \1;\ Secure if secure
+
+    # Add the HSTS header with a 1 year max-age
+    rspadd Strict-Transport-Security:\ max-age=31536000 if secure
+
+    # Configuration for each virtual host (uses Server Name Indication, SNI)
+    acl host_ubuntugreece_xyz hdr(host) -i ubuntugreece.xyz www.ubuntugreece.xyz
+    acl host_web2_ubuntugreece_xyz hdr(host) -i web2.ubuntugreece.xyz
+    acl host_web3_ubuntugreece_xyz hdr(host) -i web3.ubuntugreece.xyz
+
+    # Directing the connection to the correct LXD container
+    use_backend web1_cluster if host_ubuntugreece_xyz
+    use_backend web2_cluster if host_web2_ubuntugreece_xyz
+    use_backend web3_cluster if host_web3_ubuntugreece_xyz
+
+# Configuration of the backend (HAProxy as a TLS Termination Proxy)
+backend web1_cluster
+    balance leastconn
+    # We set the X-Client-IP HTTP header. This is usefull if we want the web server to know the real client IP.
+    http-request set-header X-Client-IP %[src]
+    # This backend, named here "web1", directs to container "web1.lxd" (hostname).
+    server web1 web1.lxd:80 check
+
+backend web2_cluster
+    balance leastconn
+    # We set the X-Client-IP HTTP header. This is usefull if we want the web server to know the real client IP.
+    http-request set-header X-Client-IP %[src]
+    # This backend, named here "web2", directs to container "web2.lxd" (hostname).
+    server web2 web2.lxd:80 check
+
+backend web3_cluster
+    balance leastconn
+    # We set the X-Client-IP HTTP header. This is usefull if we want the web server to know the real client IP.
+    http-request set-header X-Client-IP %[src]
+    # This backend, named here "web3", directs to container "web3.lxd" (hostname).
+    server web3 web3.lxd:80 check

Let’s restart HAProxy. If you get any errors, run systemctl status haproxy and try to figure out what went wrong.

root@haproxy:~# systemctl restart haproxy
root@haproxy:~# exit
ubuntu@ubuntu-512mb-ams3-01:~$

Does it work? Let’s visit the website,

do-ubuntugreece

It’s is working! Let’s Encrypt will be able to access and verify that we own the domain in the next step.

Get certificates from Let’s Encrypt

We exit out to the VPS and install letsencrypt.

ubuntu@ubuntu-512mb-ams3-01:~$ sudo apt install letsencrypt
[sudo] password for ubuntu:
Reading package lists... Done
...
Setting up python-pyicu (1.9.2-2build1) ...
ubuntu@ubuntu-512mb-ams3-01:~$

We run letsencrypt three times, one for each website. update It is also possible to simplify the following by using multiple domain (or Subject Alternative Names (SAN)) certificates. Thanks for @jack who mentioned this in the comments.

ubuntu@ubuntu-512mb-ams3-01:~$ sudo letsencrypt certonly --authenticator webroot --webroot-path=/var/lib/lxd/containers/web1/rootfs/var/www/html -d ubuntugreece.xyz -d www.ubuntugreece.xyz
... they ask for a contact e-mail address and whether we accept the Terms of Service...

IMPORTANT NOTES:
 - If you lose your account credentials, you can recover through
   e-mails sent to xxxxx@gmail.com.
 - Congratulations! Your certificate and chain have been saved at
   /etc/letsencrypt/live/ubuntugreece.xyz/fullchain.pem. Your cert
   will expire on 2016-10-21. To obtain a new version of the
   certificate in the future, simply run Let's Encrypt again.
 - Your account credentials have been saved in your Let's Encrypt
   configuration directory at /etc/letsencrypt. You should make a
   secure backup of this folder now. This configuration directory will
   also contain certificates and private keys obtained by Let's
   Encrypt so making regular backups of this folder is ideal.
 - If you like Let's Encrypt, please consider supporting our work by:

   Donating to ISRG / Let's Encrypt:   https://letsencrypt.org/donate
   Donating to EFF:                    https://eff.org/donate-le

ubuntu@ubuntu-512mb-ams3-01:~$

For completeness, here are the command lines for the other two websites,

ubuntu@ubuntu-512mb-ams3-01:~$ sudo letsencrypt certonly --authenticator webroot --webroot-path=/var/lib/lxd/containers/web2/rootfs/var/www/html -d web2.ubuntugreece.xyz

IMPORTANT NOTES:
 - Congratulations! Your certificate and chain have been saved at
   /etc/letsencrypt/live/web2.ubuntugreece.xyz/fullchain.pem. Your
   cert will expire on 2016-10-21. To obtain a new version of the
   certificate in the future, simply run Let's Encrypt again.
 - If you like Let's Encrypt, please consider supporting our work by:

   Donating to ISRG / Let's Encrypt:   https://letsencrypt.org/donate
   Donating to EFF:                    https://eff.org/donate-le

ubuntu@ubuntu-512mb-ams3-01:~$ time sudo letsencrypt certonly --authenticator webroot --webroot-path=/var/lib/lxd/containers/web3/rootfs/var/www/html -d web3.ubuntugreece.xyz

IMPORTANT NOTES:
 - Congratulations! Your certificate and chain have been saved at
   /etc/letsencrypt/live/web3.ubuntugreece.xyz/fullchain.pem. Your
   cert will expire on 2016-10-21. To obtain a new version of the
   certificate in the future, simply run Let's Encrypt again.
 - If you like Let's Encrypt, please consider supporting our work by:

   Donating to ISRG / Let's Encrypt:   https://letsencrypt.org/donate
   Donating to EFF:                    https://eff.org/donate-le


real    0m18.458s
user    0m0.852s
sys    0m0.172s
ubuntu@ubuntu-512mb-ams3-01:~$

Yeah, it takes only around twenty seconds to get your Let’s Encrypt certificate!

We got the certificates, now we need to prepare them so that HAProxy (our TLS Termination Proxy) can make use of them. We just need to join together the certificate chain and the private key for each certificate, and place them in the haproxy container at the appropriate directory.

ubuntu@ubuntu-512mb-ams3-01:~$ sudo mkdir /var/lib/lxd/containers/haproxy/rootfs/etc/haproxy/certs/
ubuntu@ubuntu-512mb-ams3-01:~$ DOMAIN='ubuntugreece.xyz' sudo -E bash -c 'cat /etc/letsencrypt/live/$DOMAIN/fullchain.pem /etc/letsencrypt/live/$DOMAIN/privkey.pem > /var/lib/lxd/containers/haproxy/rootfs/etc/haproxy/certs/$DOMAIN.pem'
ubuntu@ubuntu-512mb-ams3-01:~$ DOMAIN='web2.ubuntugreece.xyz' sudo -E bash -c 'cat /etc/letsencrypt/live/$DOMAIN/fullchain.pem /etc/letsencrypt/live/$DOMAIN/privkey.pem > /var/lib/lxd/containers/haproxy/rootfs/etc/haproxy/certs/$DOMAIN.pem'
ubuntu@ubuntu-512mb-ams3-01:~$ DOMAIN='web3.ubuntugreece.xyz' sudo -E bash -c 'cat /etc/letsencrypt/live/$DOMAIN/fullchain.pem /etc/letsencrypt/live/$DOMAIN/privkey.pem > /var/lib/lxd/containers/haproxy/rootfs/etc/haproxy/certs/$DOMAIN.pem'
ubuntu@ubuntu-512mb-ams3-01:~$

HAProxy final configuration

We are almost there. We need to enter the haproxy container and uncomment those two lines (those that started with ###) that will enable HAProxy to work as a TLS Termination Proxy. Then, restart the haproxy service.

ubuntu@ubuntu-512mb-ams3-01:~$ lxc exec haproxy bash
root@haproxy:~# vi /etc/haproxy/haproxy.cfg

haproxy-config-ok
root@haproxy:/etc/haproxy# systemctl restart haproxy
root@haproxy:/etc/haproxy# exit
ubuntu@ubuntu-512mb-ams3-01:~$

Let’s test them!

Here are the three websites, notice the padlocks on all three of them,

The SSL Server Report (Qualys)

Here are the SSL Server Reports for each website,

You can check the cached reports for LXD container web1, LXD container web2 and LXD container web3.

Results

The disk space requirements for those four containers (three static websites plus haproxy) are

ubuntu@ubuntu-512mb-ams3-01:~$ sudo zpool list
[sudo] password for ubuntu:
NAME         SIZE  ALLOC   FREE  EXPANDSZ   FRAG    CAP  DEDUP  HEALTH  ALTROOT
mypool-lxd  14.9G  1.13G  13.7G         -     4%     7%  1.00x  ONLINE  -
ubuntu@ubuntu-512mb-ams3-01:~$

The four containers required a bit over 1GB of disk space.

The biggest concern has been the limited RAM memory of 512MB. The Out Of Memory (OOM) handler was invoked a few times during the first steps of container creation, but not afterwards during the launching of the nginx instances.

ubuntu@ubuntu-512mb-ams3-01:~$ dmesg | grep "Out of memory"
[  181.976117] Out of memory: Kill process 3829 (unsquashfs) score 524 or sacrifice child
[  183.792372] Out of memory: Kill process 3834 (unsquashfs) score 525 or sacrifice child
[  190.332834] Out of memory: Kill process 3831 (unsquashfs) score 525 or sacrifice child
[  848.834570] Out of memory: Kill process 6378 (localedef) score 134 or sacrifice child
[  860.833991] Out of memory: Kill process 6400 (localedef) score 143 or sacrifice child
[  878.837410] Out of memory: Kill process 6436 (localedef) score 151 or sacrifice child
ubuntu@ubuntu-512mb-ams3-01:~$

There was an error while creating one of the containers in the beginning. I repeated the creation command and it completed successfully. That error was probably related to this unsquashfs kill.

Summary

We set up a $5 VPS (512MB RAM, 1CPU core and 20GB SSD disk) with Ubuntu 16.04.1 LTS, then configured LXD to handle containers.

We created three containers for three static websites, and an additional container for HAProxy to work as a TLS Termination Proxy.

We got certificates for those three websites, and verified that they all pass with A+ at the Qualys SSL Server Report.

The 512MB RAM VPS should be OK for a few low traffic websites, especially those generated by static site generators.



post image

How to install LXD containers on Ubuntu on Scaleway

Scaleway, a subsidiary of Online.net, does affordable VPSes and baremetal ARM servers. They became rather well-known when they first introduced those ARM servers.

When you install Ubuntu 16.04 on a Scaleway VPS, it requires some specific configuration (compile ZFS as DKMS module) in order to get LXD. In this post, we see those additional steps to get LXD up and running on a Scaleway VPS.

An issue with Scaleway is that they heavily modify the config of the Linux kernel and you do not get the stock Ubuntu kernel when you install Ubuntu 16.04. There is a feature request to get ZFS compiled into the kernel, at https://community.online.net/t/feature-request-zfs-support/2709/3 Most probably it will take some time to get added.

In this post I do not cover the baremetal ARM or the newer x86 dedicated servers; there is an additional error there in trying to use LXD, an error about not being able to create a sparse file.

Creating a VPS on Scaleway

Once we create an account on Scaleway (we also add our SSH public key), we click to create a VC1 server with the default settings.

scaleway-vc1

There are several types of VPS, we select the VC1 which comes with 2 x86 64-bit cores, 2GB memory and 50GB disk space.

scaleway-do-no-block-SMTP

Under Security, there is a default policy to disable «SMTP». These are firewall rules drop packets destined to ports 25, 465 and 587. If you intend to use SMTP at a later date, it makes sense to disable this security policy now. Otherwise, once you get your VPS running, it takes about 30+30 minutes of downtime to archive and restart your VPS in order for this change to take effect.

scaleway-provisioning

Once you click Create, it takes a couple of minutes for the provisioning, for the kernel to start and then booting of the VPS.

After the creation, the administrative page shows the IP address that we need to connect to the VPS.

Initial package updates and upgrades

$ ssh root@163.172.132.19
The authenticity of host '163.172.132.19 (163.172.132.19)' can't be established.
ECDSA key fingerprint is SHA256:Z4LMCnXUyuvwO16HI763r4h5+mURBd8/4u2bFPLETes.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added '163.172.132.19' (ECDSA) to the list of known hosts.
 _
 ___ ___ __ _| | _____ ____ _ _ _
/ __|/ __/ _` | |/ _ \ \ /\ / / _` | | | |
\__ \ (_| (_| | | __/\ V V / (_| | |_| |
|___/\___\__,_|_|\___| \_/\_/ \__,_|\__, |
 |___/

Welcome on Ubuntu Xenial (16.04 LTS) (GNU/Linux 4.5.7-std-3 x86_64 )

System information as of: Wed Jul 13 19:46:53 UTC 2016

System load: 0.02 Int IP Address: 10.2.46.19
Memory usage: 0.0% Pub IP Address: 163.172.132.19
Usage on /: 3% Swap usage: 0.0%
Local Users: 0 Processes: 83
Image build: 2016-05-20 System uptime: 3 min
Disk nbd0: l_ssd 50G

Documentation: https://scaleway.com/docs
Community: https://community.scaleway.com
Image source: https://github.com/scaleway/image-ubuntu


The programs included with the Ubuntu system are free software;
the exact distribution terms for each program are described in the
individual files in /usr/share/doc/*/copyright.

Ubuntu comes with ABSOLUTELY NO WARRANTY, to the extent permitted by
applicable law.

root@scw-test:~# apt update
Hit:1 http://archive.ubuntu.com/ubuntu xenial InRelease
Get:2 http://archive.ubuntu.com/ubuntu xenial-updates InRelease [95.7 kB]
Get:3 http://archive.ubuntu.com/ubuntu xenial-security InRelease [94.5 kB]
Get:4 http://archive.ubuntu.com/ubuntu xenial/main Translation-en [568 kB]
...
Reading package lists... Done
Building dependency tree
Reading state information... Done
51 packages can be upgraded. Run 'apt list --upgradable' to see them.
root@scw-test:~# apt upgrade
Reading package lists... Done
Building dependency tree
Reading state information... Done
Calculating upgrade... Done
The following NEW packages will be installed:
 libpython3.5
The following packages will be upgraded:
 apt apt-utils base-files bash bash-completion bsdutils dh-python gcc-5-base
 grep init init-system-helpers libapt-inst2.0 libapt-pkg5.0 libblkid1
 libboost-iostreams1.58.0 libboost-random1.58.0 libboost-system1.58.0
 libboost-thread1.58.0 libexpat1 libfdisk1 libgnutls-openssl27 libgnutls30
 libldap-2.4-2 libmount1 libnspr4 libnss3 libnss3-nssdb libpython2.7-minimal
 libpython2.7-stdlib librados2 librbd1 libsmartcols1 libstdc++6 libsystemd0
 libudev1 libuuid1 lsb-base lsb-release mount python2.7 python2.7-minimal
 systemd systemd-sysv tzdata udev util-linux uuid-runtime vim vim-common
 vim-runtime wget
51 upgraded, 1 newly installed, 0 to remove and 0 not upgraded.
Need to get 27.6 MB of archives.
After this operation, 5,069 kB of additional disk space will be used.
Do you want to continue? [Y/n] Y
Get:1 http://archive.ubuntu.com/ubuntu xenial-updates/main amd64 base-files amd64 9.4ubuntu4.1 [68.4 kB]
Get:2 http://archive.ubuntu.com/ubuntu xenial-updates/main amd64 bash amd64 4.3-14ubuntu1.1 [583 kB]
...
Setting up librados2 (10.2.0-0ubuntu0.16.04.2) ...
Setting up librbd1 (10.2.0-0ubuntu0.16.04.2) ...
Processing triggers for libc-bin (2.23-0ubuntu3) ...
root@scw-test:~#

Installing ZFS as a DKMS module

There are instructions on how to install ZFS as a DKMS module at https://github.com/scaleway/kernel-tools#how-to-build-a-custom-kernel-module

First, we install the build-essential package,

root@scw-test:~# apt install build-essential

Second, we run the script that is provided at https://github.com/scaleway/kernel-tools#how-to-build-a-custom-kernel-module It takes about a minute for this script to run; it downloads the kernel source and prepares the modules for compilation.

Third, we install the zfsutils-linux package as usual. In this case, it takes more time to install, as it needs to recompile the ZFS modules.

root@scw-test:~# apt install zfsutils-linux

This step takes lots of time. Eight and a half minutes!

Installing the LXD package

The final step is to install the LXD package

root@scw-test:~# apt install lxd

Initial configuration of LXD

A VPS at Scaleway does not have access to a separate block device (the dedicated servers do). Therefore, we are creating the ZFS filesystem in a loopback device.

root@scw-test:~# df -h /
Filesystem Size Used Avail Use% Mounted on
/dev/vda 46G 2.1G 42G 5% /

We have 42GB of free space, therefore let’s allocate 36GB for the ZFS filesystem.

root@scw-test:~# lxd init
Name of the storage backend to use (dir or zfs): zfs
Create a new ZFS pool (yes/no)? yes
Name of the new ZFS pool: mylxd-pool
Would you like to use an existing block device (yes/no)? no
Size in GB of the new loop device (1GB minimum): 36
Would you like LXD to be available over the network (yes/no)? no
Do you want to configure the LXD bridge (yes/no)? yes
...we accept the defaults in creating the LXD bridge...
Warning: Stopping lxd.service, but it can still be activated by:
 lxd.socket
LXD has been successfully configured.
root@scw-test:~#



Create a user to manage LXD

We create a non-root user to manage LXD. It is advised to create such a user and refrain from using root for such tasks.

root@scw-test:~# adduser ubuntu
Adding user `ubuntu' ...
Adding new group `ubuntu' (1000) ...
Adding new user `ubuntu' (1000) with group `ubuntu' ...
Creating home directory `/home/ubuntu' ...
Copying files from `/etc/skel' ...
Enter new UNIX password: *******
Retype new UNIX password: *******
passwd: password updated successfully
Changing the user information for ubuntu
Enter the new value, or press ENTER for the default
 Full Name []:
 Room Number []:
 Work Phone []:
 Home Phone []:
 Other []:
Is the information correct? [Y/n] Y
root@scw-test:~#

Then, let’s add this user ubuntu to the sudo (ability to run sudo) and lxd (manage LXD containers) groups,

root@scw-test:~# adduser ubuntu sudo         # For scaleway. For others, the name might be 'admin'.
root@scw-test:~# adduser ubuntu lxd

Finally, let’s restart the VPS. Although it is not necessary, it is a good practice in order to make sure that lxd starts automatically even with ZFS being compiled through DKMS. A shutdown -r now would suffice to restart the VPS. After about 20 seconds, we can ssh again, as the new user ubuntu.

Let’s start up a container

We log in as this new user ubuntu (or, sudo su – ubuntu).

ubuntu@scw-test:~$ lxc launch ubuntu:x mycontainer
Creating mycontainer
Retrieving image: 100%
Starting mycontainer
ubuntu@scw-test:~$ lxc list
+-------------+---------+------+------+------------+-----------+
| NAME        | STATE   | IPV4 | IPV6 | TYPE       | SNAPSHOTS |
+-------------+---------+------+------+------------+-----------+
| mycontainer | RUNNING |      |      | PERSISTENT |         0 |
+-------------+---------+------+------+------------+-----------+
ubuntu@scw-test:~$ lxc list
+-------------+---------+----------------------+------+------------+-----------+
| NAME        | STATE   | IPV4                 | IPV6 | TYPE       | SNAPSHOTS |
+-------------+---------+----------------------+------+------------+-----------+
| mycontainer | RUNNING | 10.181.132.19 (eth0) |      | PERSISTENT | 0         |
+-------------+---------+----------------------+------+------------+-----------+
ubuntu@scw-test:~$

We launched an Ubuntu 16.04 LTS (Xenial: “x”) container, and then we listed the details. It takes a few moments for the container to boot up. In the second attempt, the container completed the booting up and also got the IP address.

That’s it! LXD is up and running, and we successfully created a container. See these instructions on how to test the container with a Web server.
